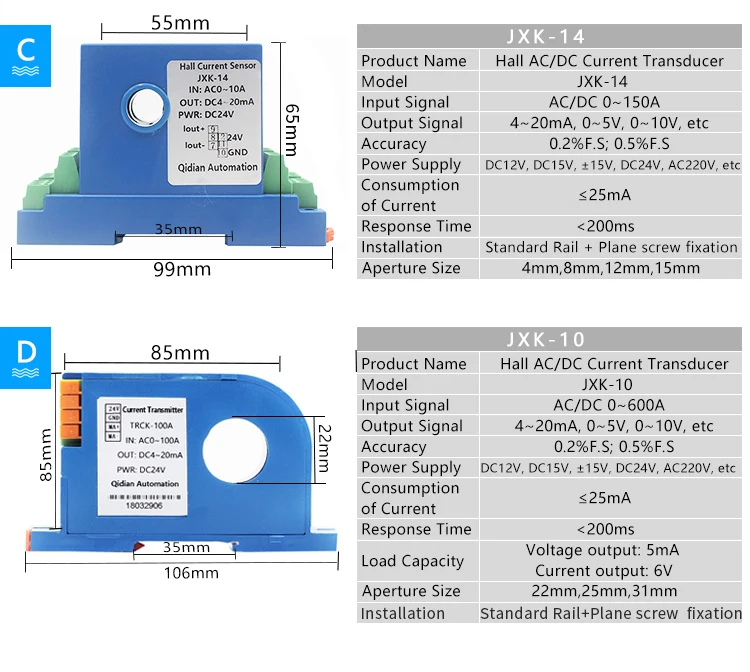

- Dimensions: 99*65*24mm
- Operating Temperature: -20-55C
- Supply Voltage: DC24V DC12V AC220V
- Accuracy Class: 0.5%
- Model Number: JXK-14
- Display Type: Analog Only
- DIY Supplies: ELECTRICAL
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Product name: AC/DC Current Transmitter
- Input current: AC/DC0-150A
- Output signal: 4-20mA,0-10V,0-5V
- Power supply: DC24V DC12V AC220V
- Hole diameter: 4mm,8mm,12mm,15mm
Attention Please:
JXK-14 DC Current transmitter
The Link is for DC currnet input, 0-150A can be customized ,if you choose AC current input,please contact me or u can mark input range on the order .
12mm diameter.
If you want to do other parameters, please contact me.
And let me know the input range , output signal , power supply request .
Product description and Specification:
<1>. Working principle: open loop direct measurement.
<2>. Usage: Used for measuring DC, AC, pulse current and other arbitrary waveform current.
<3>. Advantages: Better cost performance, low power consumption, small volume, light weight,
easy installation, perforation input and no insertion loss.
<4>. Application: Frequency conversion speed control system, electric welding machine, electrochemistry,
power supply monitoring, electric locomotive, low level starting protection.
<5>. The input, output, power and outer shell are isolated, with strong anti-interference ability and high reliability.
<6>. Full channel configuration,Parameter customizable.
